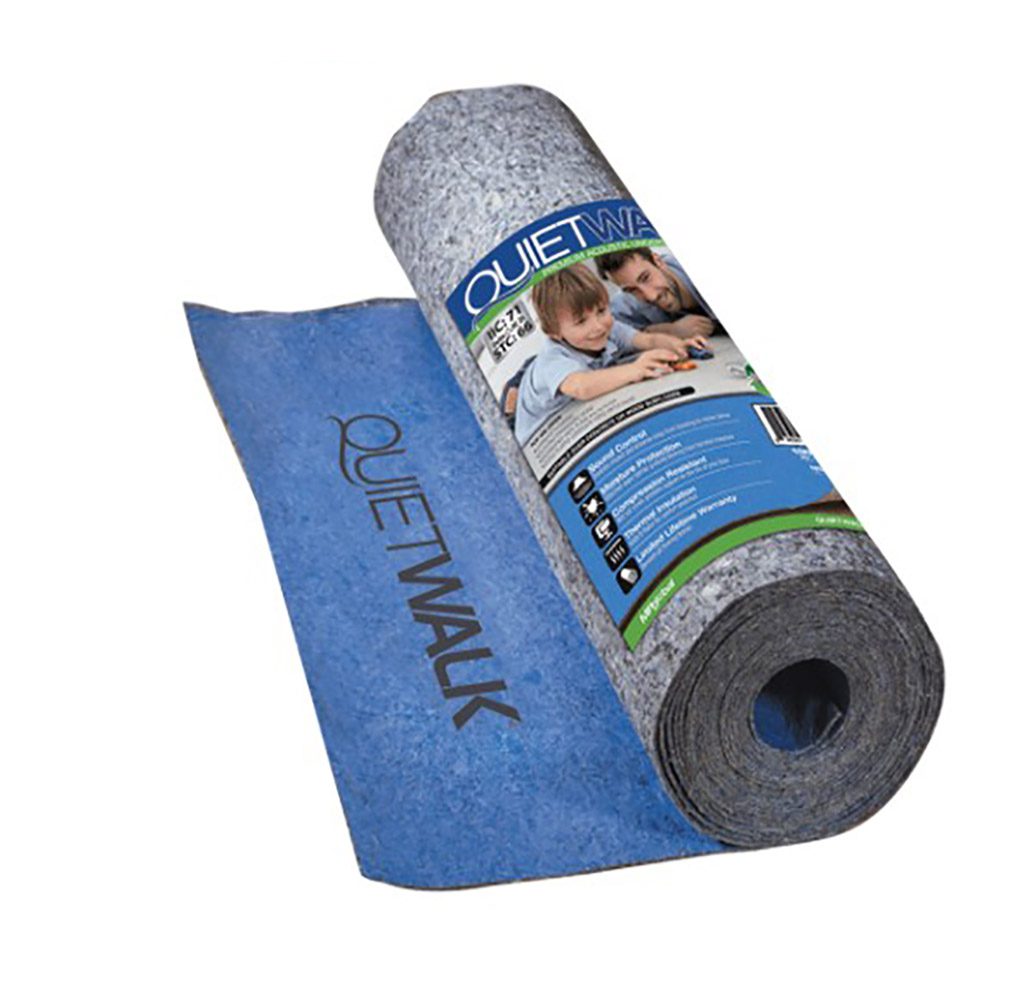

QuietWalk LV Underlay
QuietWalk LV Underlay
Enhance Your Flooring with QuietWalk
QuietWalk LV Underlay is a quality certified underlayment, designed for use alongside SPC-Lux Flooring although also compatible with Laminate, Rigid Core Vinyl (5mm or Thicker), LVT (5mm / Thicker), and Floating Engineered Wood. Suitable over both Concrete or Wood Subfloors.
It has been designed to enable your floor to handle real everyday life; from spills to heavy footfall areas – QuietWalk has you covered. It allows your SPC-Lux Flooring to look beautiful and maintain its showroom quality.
Recycled Filaments Fibres
- The recycled filament fibers support the SPC-Lux click mechanism. QuietWalk smooths our imperfections, as whilst it is firm, it is also flexible enough to form around any subfloor roughness. It’s dense, which supports the click mechanism of SPC-Lux and will uphold its support, even with continual heavy footfall.
Sound Barrier
- Its fibre construction absorbs and controls sound, so manages the sound and reduces the transmitted unwanted noises.
Vapour Barrier
- QuietWalk protects from moisture and acts as a vapour barrier, by attacking subfloor moisture. It disperses it throughout the pad, to draw it up and away. This process is called DriWick Technology, which promotes moisture dissipation, allowing it to evaporate. It is also compression resistant and environmentally friendly too!
QuietWalk LV Underlay
QuietWalk is also suitable for those of you who have or are looking to install in-floor heating systems, alongside your SPC-Lux Flooring. This is because QuietWalk allows heat from your underflooring heating system to permeate into the room above. At the same time, it protects the SPC-Lux Flooring from thermal shock – so is an approved product for this application.
If you have any queries relating to this product, please feel free to submit an enquiry and we will be happy to assist you.
FREE GIFT
Spend £500 + VAT and Choose a FREE GIFT at the checkout!
Free Gifts Include: Thermaseal Foil Joining Tape, Heavy Duty Staple Gun Kit, Multifoil Insulation Scissors or Thermaseal Double Sided Tape.
How to Install QuietWalk Underlay
-
Prepare the subfloor
Remove all preexisting flooring before attempting to install QuietWalk. Ensure the subfloor surface is level clean, dry, and free from any debris or dust.
-
Roll out the underlay
Roll QuietWalk Underlay over the subfloor with the vapour barrier film (imprinted side) facing up. The perimeter edges of QuietWalk need to be 12 to 20mm away from the wall, this will allow the material to settle without bunching.
-
Tape and seal
Seams need to be butted together flush, do not overlap the underlay, tape the seams with Thermaseal Foil Joining Tape.
-
Install your flooring
Install your SPC-Lux flooring or your chosen flooring according to the manufacturer's installation instructions.
What are the approved subfloors, for QuietWalk?
Wood, Concrete, Gypsum Concrete, Cement Backer Units.
Compatible Flooring
SPC-Lux Flooring, Laminate Flooring, Floating Engineered Wood.
Sound Rating
IIC : 71 STC Sound Rating: 66 Delta IIC Sound Rating: 24
R Value
0.58
Moisture Emissions Protection
5 lbs per 1,000 sq ft per day
Water Vapor Transmission Rate
1.4 lbs per 1,000 sq ft every 24 hours
How to Install?
Roll out the underlayment, vapour barrier side up. Butt the seams together and leave a gap of 1/2” to 3/4” from the wall. Seal the quietwalk up with the foil joining tape provided and follow with the SPC-Lux Flooring.
| Roll Coverage | 9.29m² |
| Roll Size (ft) | 3ft x 33.3ft |
| Roll Size (m2) | 0.929m x 10m |
| Roll Weight | 5.5kg |
| Guarantee | 10 Year Guarantee |
| Volatile Organic Chemical Free? | Yes |
| Damp Proof Membrane? | Yes |
| ΔLw (db) sound reduction 20 | 20 |
| Sound Transmission Class | 66 |
| Impact Insulation Class | 71 |
| Thickness | 1.7mm |
