TrioQuilt 0.15 Roof Insulation System

Meet current roof insulation requirements with the TrioQuilt 0.15 Roof Insulation System. Designed for pitched and flat roofs, this complete three layer solution achieves a U Value of 0.15 while reducing installation time, material costs and overall insulation depth.

Ideal for extensions and refurbishment projects, TrioQuilt combines YBS SuperQuilt with EcoLoft Non Itch insulation to create a high performance alternative to rigid PIR boards.

What Is Included in the TrioQuilt System?

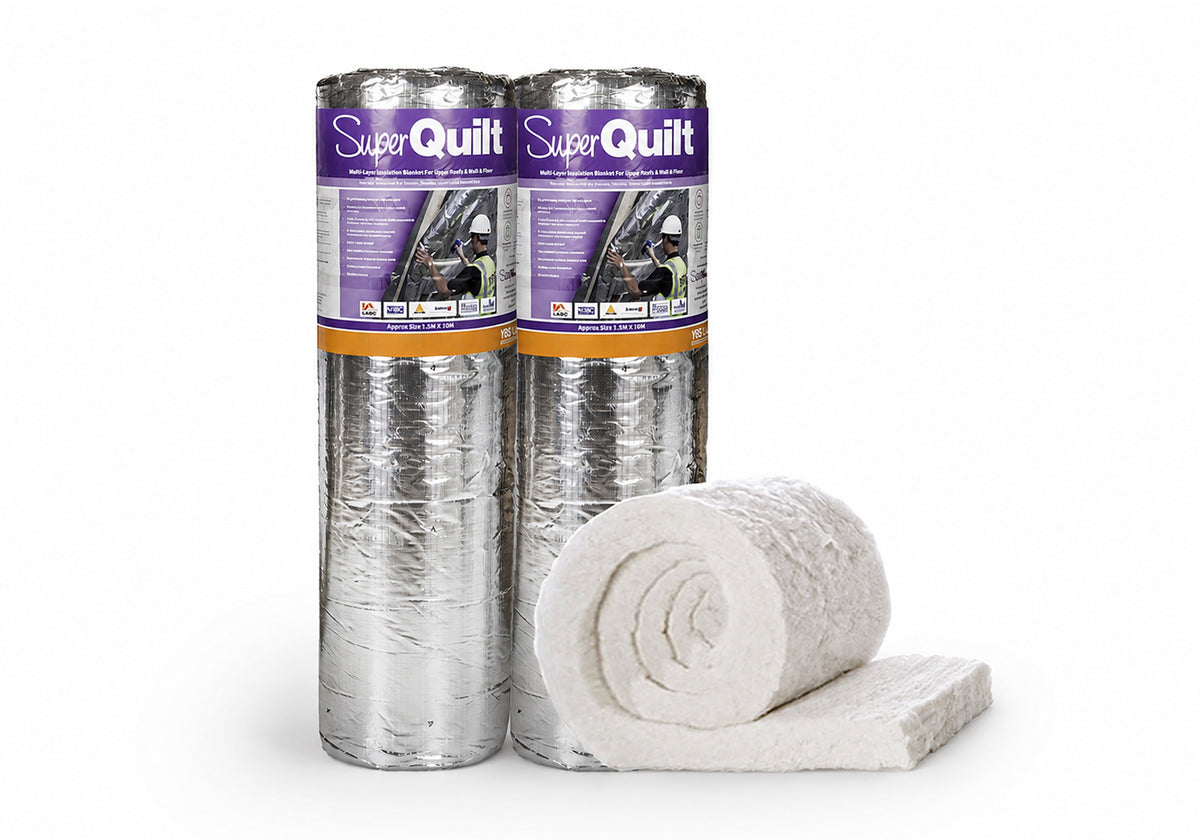

The TrioQuilt system combines:

2 layers of YBS SuperQuilt, supplied in 1.5m x 10m rolls covering 15m² each

1 layer of 100mm EcoLoft Non Itch insulation, covering 9.12m² per pack and available in 380mm or 570mm widths

Thermaseal Foil Joining Tape for sealing joints and creating a continuous vapour control layer

Why Choose TrioQuilt Roof Insulation?

Achieves a 0.15 U Value

The TrioQuilt system is designed to achieve a U Value of 0.15 for suitable pitched and flat roof constructions, helping projects meet current Part L thermal requirements.

Faster and Easier Installation

EcoLoft Non Itch fits between the rafters while SuperQuilt is installed below them. This reduces the time spent measuring and cutting rigid PIR insulation boards.

Built In Vapour Control

When fully taped and sealed, SuperQuilt creates an effective vapour control layer, removing the need for a separate VCL in the specified system.

Comfortable to Install

Both SuperQuilt and EcoLoft Non Itch are free from itchy mineral fibres, making the system cleaner and easier to handle during installation.

Space Saving Roof Insulation

TrioQuilt provides excellent thermal performance without requiring excessive insulation depth, making it ideal where internal headroom is important.

Recommended TrioQuilt Installation

Pitched Roof Installation

Install the breather membrane, tile battens and roof covering externally.

Fit 100mm EcoLoft Non Itch centrally between the rafters.

Staple the first layer of SuperQuilt taut beneath the rafters.

Fix 25mm battens beneath the first layer.

Install the second layer of SuperQuilt beneath the battens.

Fix a further layer of 25mm battens.

Finish internally with standard plasterboard.

This installation method is based on pitched roofs with rafters of 150mm or greater.

Complete 0.15 Roof Insulation Solution

TrioQuilt provides a cost effective and easy to install solution for achieving excellent roof thermal performance without relying entirely on rigid PIR insulation.

For specification advice, installation guidance or help calculating the quantity required, contact our insulation team.

Free Gift on Larger Orders

Order a TrioQuilt kit of 30m² or more and choose a free gift at checkout.

Available gifts include Thermaseal Foil Joining Tape 75mm x 50m, Heavy Duty Staple Gun Kit, Multifoil Insulation Scissors or Thermaseal Double Sided Tape.
